## How to calculate the required quantity of geomembrane?

Calculating the required quantity of geomembrane involves assessing the area to be covered and considering factors such as overlap, seams, and waste. Here’s a general guideline to help you calculate the required quantity of geomembrane:

### Steps to Calculate Geomembrane Quantity:

1. Determine the Area: Measure the length and width of the area where you plan to install the geomembrane. If the shape is irregular, break it down into simpler shapes (rectangles, triangles, etc.) and calculate their areas separately.

2. Consider Overlaps: Geomembrane installation usually requires overlapping sheets to ensure proper sealing. The amount of overlap depends on the specific requirements of the project. A common practice is to use a 1-2 foot overlap (0.3-0.6 meters) for seams.

3. Include Seams: Geomembrane sheets may need to be seamed together. Take into account the length of seams and multiply by the number of seams required.

4. Factor in Waste: There is often some waste in the cutting and installation process. The amount of waste can vary, but a common estimate is around 5-10%. Add this percentage to your calculated area.

5. Convert Units: Ensure that all measurements are in the same units (e.g., square meters or square feet). Convert if necessary.

6. Calculate Total Quantity: Use the following formula to calculate the total quantity of geomembrane needed:

Total Quantity=Area+(Overlap×Number of Overlaps)+(Seam Length×Number of Seams)+Waste

Ensure all values are in the same units.

7. Order Additional for Contingencies: It’s often wise to order a bit more than the calculated quantity to account for unexpected issues or changes during installation.

### Example:

Let’s say you have a rectangular pond with dimensions:

• Length: 50 meters
• Width: 30 meters

Overlap: 1 foot (0.3 meters) Seam Length: 5 meters Number of Overlaps: 2 Number of Seams: 4 Waste: 7%

Area=50×30=1500 square meters

Total Quantity=1500+(0.3×2)+(5×4)+0.07×1500

Ensure the units are consistent throughout the calculation.

This is a simplified example, and actual project requirements may vary. Consult with a geomembrane supplier or a qualified engineer for precise calculations based on your specific project needs.

## What is the difference in geomembrane thickness?

Geomembranes come in various thicknesses, and the choice of thickness depends on the specific requirements and environmental conditions of the project. The key differences in geomembrane thicknesses are associated with their intended applications and the level of protection or containment needed. Here are some general guidelines:

Thin Geomembranes (Less than 1.0 mm):

Typically used for temporary applications or where short-term containment is required.
Commonly used in construction projects, temporary storage, or as a barrier layer for erosion control.
May be more flexible and cost-effective but may not provide long-term durability.
Medium Thickness Geomembranes (1.0 mm to 2.0 mm):

Suitable for a wide range of applications, including waste containment, agricultural ponds, and secondary containment.
Offers a good balance between flexibility and durability.
Often chosen for projects where moderate chemical resistance and long-term stability are essential.
Thick Geomembranes (Greater than 2.0 mm):

Used in applications that require high-strength, puncture resistance, and long-term durability.
Commonly used in primary containment areas for hazardous waste, industrial ponds, and applications where chemical resistance is critical.
Provides enhanced protection against environmental factors and harsh chemicals.
High-Density Polyethylene (HDPE) Thickness Considerations:

HDPE geomembranes are one of the most common types. They are available in various thicknesses.
Thicknesses for HDPE geomembranes can range from 0.5 mm to 3.0 mm or more.
The choice of thickness depends on factors such as the type of waste being contained, site conditions, and regulatory requirements.
Reinforced Geomembranes:

Some geomembranes are reinforced with fabric or other materials to enhance strength and tear resistance.
The reinforcement can add to the overall thickness, providing additional structural integrity.
It’s important to note that the selection of geomembrane thickness should be based on a thorough site-specific analysis and consideration of factors such as environmental conditions, the type of contained material, regulatory requirements, and the desired lifespan of the containment system. Consulting with a geosynthetic engineer or a qualified professional is recommended to ensure the appropriate geomembrane thickness for a specific project.

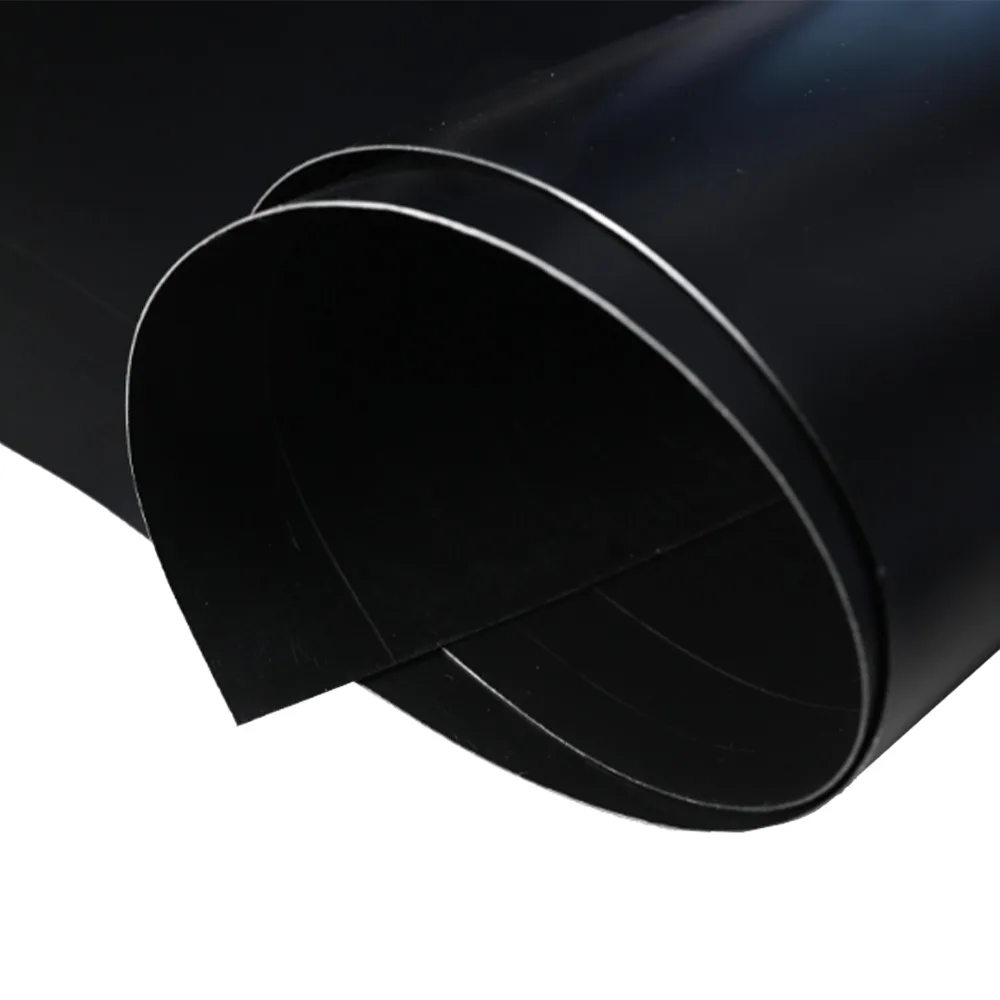

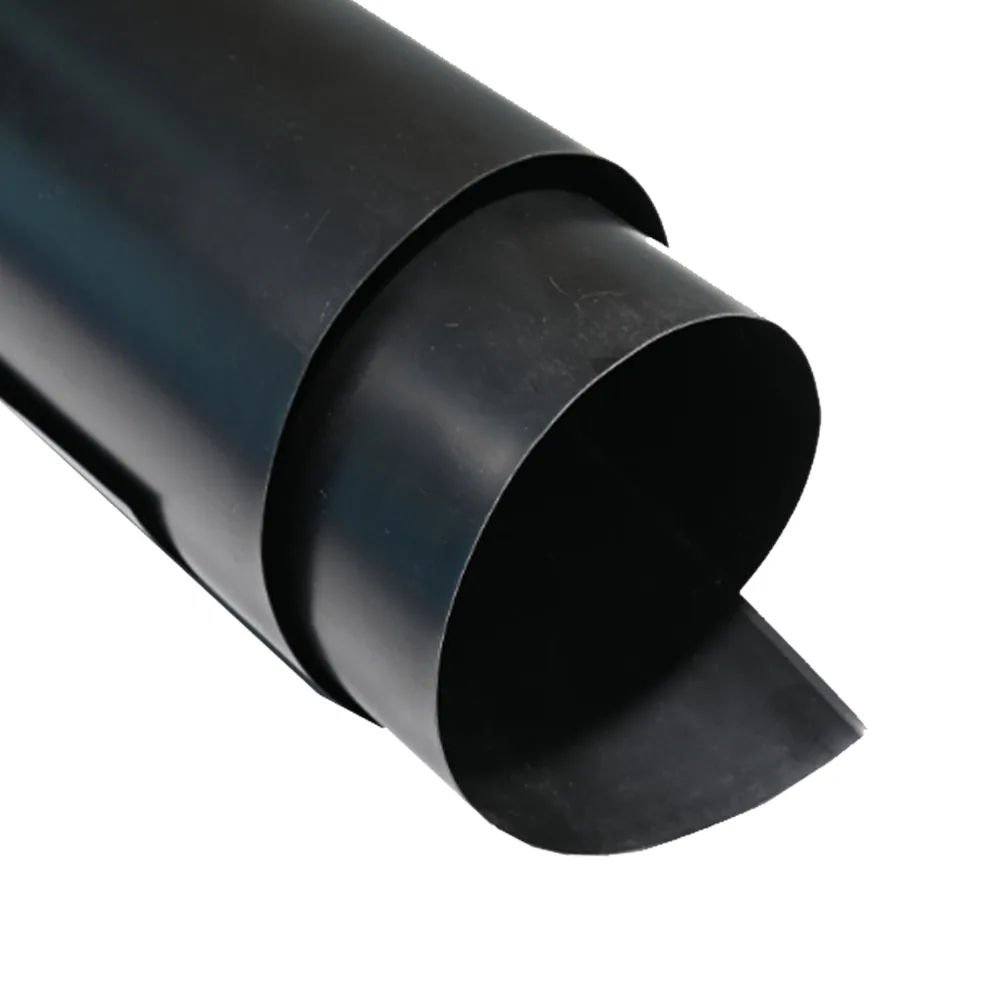

## Why are geomembranes so black?

Geomembranes are often black due to the incorporation of carbon black as an additive during the manufacturing process. Carbon black is a form of finely divided carbon, typically produced by the incomplete combustion of hydrocarbons. It is a common pigment and reinforcing agent in polymer-based materials, including geomembranes. The addition of carbon black serves several important purposes:

UV Resistance:

Carbon black provides ultraviolet (UV) resistance to geomembranes. Exposure to sunlight and UV radiation can cause degradation and reduced performance in certain polymers. Carbon black acts as a stabilizer, helping to protect geomembranes from the harmful effects of UV rays.
Heat Resistance:

The presence of carbon black enhances the heat resistance of geomembranes. This is particularly important in applications where geomembranes are exposed to elevated temperatures or during installation processes that involve heat welding.
Enhanced Mechanical Properties:

Carbon black improves the mechanical properties of geomembranes, including tensile strength and tear resistance. This reinforcement contributes to the overall durability and performance of the geomembrane.
Color Uniformity:

Carbon black imparts a deep black color to the geomembrane, providing uniformity in appearance. The dark color also helps with heat absorption, which can be beneficial in certain applications.
Light Absorption:

The black color of geomembranes allows them to absorb more sunlight and heat, which can be advantageous in cold climates or for applications where maintaining a specific temperature is desirable.
Visibility and Aesthetics:

In some cases, the black color is chosen for practical reasons related to visibility. For example, in waste containment applications, a black geomembrane can make it easier to detect leaks or punctures.
While black is a common color for geomembranes, they can also be manufactured in other colors depending on specific project requirements. The choice of color is often dictated by factors such as aesthetics, visibility, and the intended application. However, for many functional and environmental reasons, black geomembranes with carbon black remain widely used in various geotechnical and environmental containment applications.
