What are the installation equipment for geotextiles?

Installing geotextiles often requires the use of some specific equipment and tools to ensure that the geotextile is installed correctly and performs its function.

The following are the equipment and tools commonly used when installing geotextiles:

Bulldozers and Excavators: These heavy-duty machines are used to clear and level land surfaces for installation of geotextiles. They can also be used to dig pits or trenches under the geotextile in order to place the geotextile in the desired location.

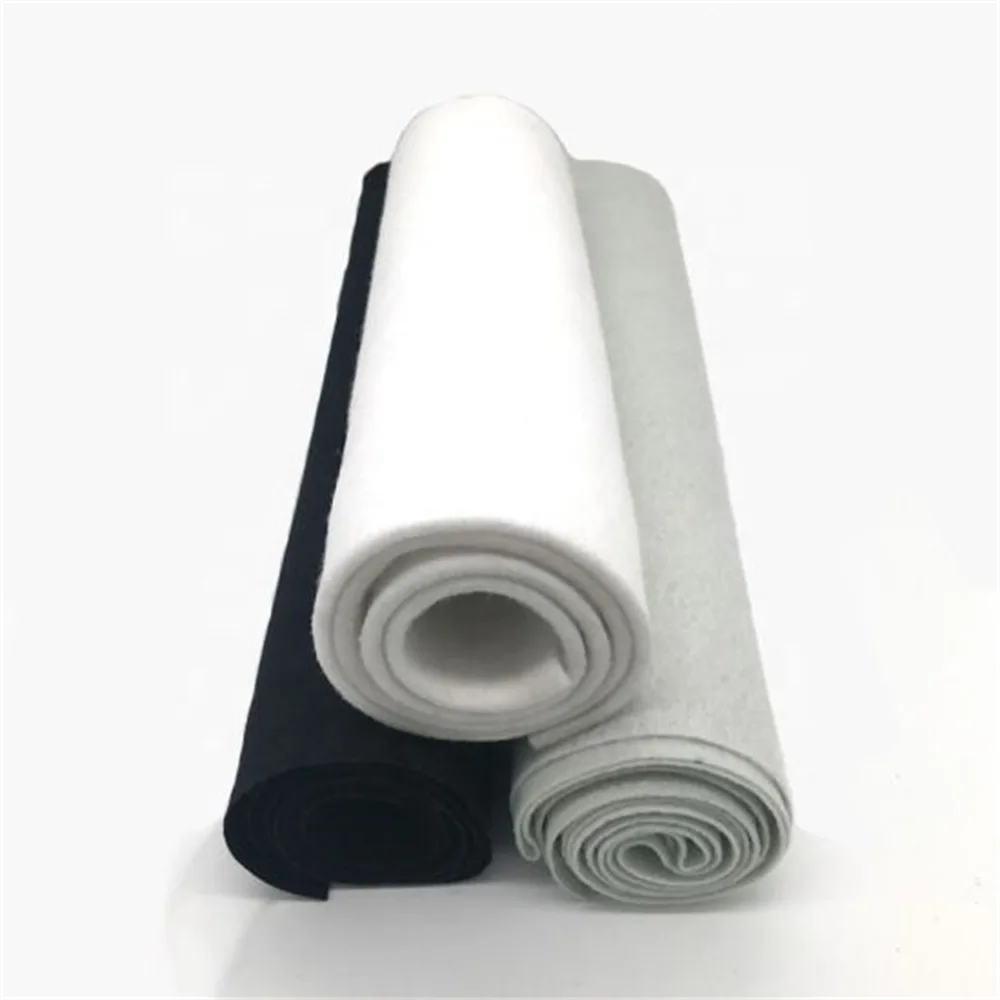

Geotextile rolls or sheets: Geotextiles are usually supplied in rolls or sheets. Rolls are suitable for larger area coverage, while sheets are suitable for smaller areas or where precise positioning is required.

Geotextile Cutting Tool: Used to cut geotextiles to suit different size and shape requirements. This can be a manual or electric cutting tool.

Anchors and retaining clamps: Used to secure geotextiles to the ground or other surfaces to prevent them from moving or rolling up. This can include floor nails, U-shaped anchors, or other types of fixing clamps.

Seam material: If you need to join two pieces of geotextile, you need to use appropriate seam material, such as geotextile tape or hot melt equipment, to ensure the sealing and strength of the joint.

Rolling equipment: used to roll geotextiles to ensure a tight fit with the ground surface and reduce voids and wavy shapes.

Measuring Tools: Measuring tools such as distance meters, measuring tape, and rulers can be used to ensure accurate installation and positioning of geotextiles.

Personal Protective Equipment: Includes hard hats, goggles, gloves and appropriate work clothing to ensure worker safety.

Hand tools: including hammers, rubber hammers, shovels, etc., for manual work when installing geotextiles.

Road roller: After the geotextile is laid, the road roller can be used to compact the foundation under the geotextile to improve its stability and load-bearing capacity.

Geotextile rolling equipment

Rolling equipment plays a very important role in the installation of geotextiles. It can ensure that the geotextiles are in full contact with the ground surface and adhere closely, thereby improving the performance and stability of the geotextiles.

Hand Roller: This is the most basic type of rolling equipment and is typically used by a single operator. A hand roller typically consists of a roller or drum that an operator holds in hand and applies pressure on the geotextile to ensure good contact between the geotextile and the ground surface. This device is suitable for small projects or areas that require precise control.

Vibratory roller press: A vibratory roller press is a piece of heavy machinery commonly used by professional geotechnical engineering teams. They have a large rolling width and powerful vibration function, and can be used for rolling large-area geotextiles. These devices are often used in large-scale foundation engineering projects.

Single Steel Roller: These roller presses have a single steel roller and are typically used for narrower areas or tasks that require greater precision. They can be maneuvered more easily and work in smaller areas.

Double Steel Roller: This type of roller press has two parallel steel rollers that provide a larger rolling area and stability. They are suitable for medium-sized geotextile laying tasks.

Rubber Wheel Roller: For projects that require gentler rolling to avoid damaging the geotextile, a rubber wheel roller is a good choice. They are typically used in gardens, landscapes, or other applications where vegetation needs to be protected.

Static Compactor: Static compactors do not have vibration capabilities, but rely on weight and static pressure to compact the geotextile. This type of equipment is often used on projects where the impact of vibration on the surrounding environment needs to be reduced.

Self-propelled roller press: Self-propelled roller press can travel on its own and is usually used in large-scale construction projects to complete the rolling task faster.

How to operate roller pressing equipment for geotextile installation

Preparation:
Before starting to install the geotextile, make sure the ground surface is clean and flat, and the foundation preparations are done according to the design requirements.
Inspect the rolling equipment to make sure it is in good working order and that the rollers or drums are not damaged or loose.

Laying geotextile:
Spread the geotextile over the surface according to the design requirements and ensure that it completely covers the area that needs to be protected or reinforced. There should be enough overlap on the edges of the geotextile to ensure there are no gaps.

Positioning roller pressing equipment:
Make sure the rolling equipment is on one side of the geotextile and start rolling from the side closest to you. Rolling from one side of the project to the other is usually the most efficient method.

Adjust the rolling equipment:
Adjust the rolling pressure of the rolling equipment according to the geotextile type and thickness. Make sure the weight and/or vibration of the roller are appropriate for the project needs.

Start rolling:
Start the rolling equipment and begin moving slowly along one side of the geotextile. Make sure the equipment applies pressure evenly and avoid staying in the same area for too long to prevent the geotextile from being over-compacted or damaged.

Repeat rolling:
Continue rolling along the length of the geotextile, making sure to cover the entire geotextile surface. You can move the rolling equipment in sequence to ensure that the overlap is also compacted.

Special area processing:
Use special care in areas that require special handling, such as where the geotextile interfaces with a slope or other structure. Smaller rolling equipment or manual handling may be required to ensure a tight seal.

Check and fix:
Regularly inspect the rolled geotextile surface to ensure there are no waves, wrinkles or bubbles. If there is a problem, fix it in time.

Record work:
Record the position and time of rolling as well as the equipment and parameters used. This will aid in project monitoring and quality control.

Cleaning and Maintenance:
After completing the rolling job, clean and maintain the rolling equipment to ensure it is in good working order for future use.

Safety is always the primary concern when operating rolling equipment. Operators should wear appropriate personal protective equipment such as safety shoes, helmets and gloves to reduce potential hazards.

In addition, the manufacturer’s operating manual and safety guidelines should be followed to ensure proper use and maintenance of the equipment.
